Sale price84.000,00 zł
External insulation: Without insulation kit

Bismark B is a PREMIUM 70mm thick wall log home/cabin. Very affordable 2 bedroom model, perfect for ADU - additional living unit, granny flat, house or cabin. It has premium double glazed wood windows. Vaulted ceilings provide open, comfortable space

2

1

5740 x 8661mm

18 degrees

19mm

49 m2

2260mm

3302mm

70mm




Insulation kit walls consist of: 38mm x 90mm beams, metal angles and 19mm thick cover plates for external use. Remember that with external insulation the foundation must be larger.

EXTERNAL

Insulating exterior - by combining these elements - mineral wall insulation, tongue and groove boards, metal brackets, and wooden components - the structure achieves both efficient insulation and a visually pleasing appearance. Do it yourself building kits. EZ Log Structures.


Energy efficiency: Our solid wood walls add an extra U=0.22 and transfer virtually no heat or cold, increasing overall thermal benefits and comfort.


Tip: Mineral wool insulation is recommended for log construction. It is impermeable to moisture, has a higher R-value per inch than fiberglass, reduces noise levels and is environmentally friendly.



Roof Insulation: Use locally sourced materials to add rafters above the tongue and groove roof boards. The thickness of the insulation is determined by the required R-value of the ceilings to meet local building codes. Dense polyurethane foam provides maximum benefits, the highest R-value for thickness, and is water-resistant. These additional rafters also increase the roof's load-bearing capacity.



OPTION A: Upgrade wooden windows to triple glazed/low-E/argon filled.

Price: 2,058 PLN

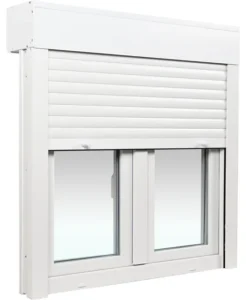

OPTION B: Upgrade your timber windows to our exclusive maintenance free white PVC/triple glazed/low e/argon filled shuttered windows plus external blinds which are operated from the interior. These unique windows provide extra comfort and security. They improve overall energy efficiency by retaining heat in summer and cold in winter. They also reduce outside noise levels and provide complete darkness for day sleepers. (See our videos page)

Price: 4,935 PLN

Assembly: The model can be assembled in approximately 5 days with 4 people.

Tip: House cladding and damp-proofing are required in most regions when insulating.

Building regulations: PREMIUM series cottages and houses are manufactured in accordance with all structural requirements of building regulations.

The set includes:

  • without floor, ready for installation on a concrete slab or wooden foundation
  • pre-cut, numbered exterior walls
  • pre-cut, numbered interior walls
  • pre-cut, numbered gable pieces
  • side wall height 2260 mm
  • vaulted, cathedral ceilings
  • roof pitch 19 degrees
  • pre-cut, numbered roof purlins 100mm x 200mm, joists spaced 558mm or less
  • pre-cut, numbered 18mm tongue and groove roof boards
  • pre-cut, numbered fascia boards
  • 3 internal doors 812mm x 2040mm
  • 5 single wide wooden windows 765mm x 990mm
  • 1 double-wide wooden window 1530mm x 990mm
  • 1 external door 990mm x 2040mm 1/2 tempered glass, multi-lock fittings
  • adjustable posts
  • terrace railings with vertical balustrades
  • door and window fittings
  • 2 spare wall beams/spare roof boards
  • 1000 - dynamometric head screws for connecting all rows, gable elements, purlins
  • packed and marked according to the order of assembly
